Why SUHMAN

China factory. Global projects. We design and build integrated sand-making systems that combine crushing, shaping, washing, fines recovery, dewatering, and dust control into one modular flow. With diesel-electric or full-electric options and project-specific layouts, our systems cut cost per ton while meeting shape and gradation targets for concrete and asphalt.

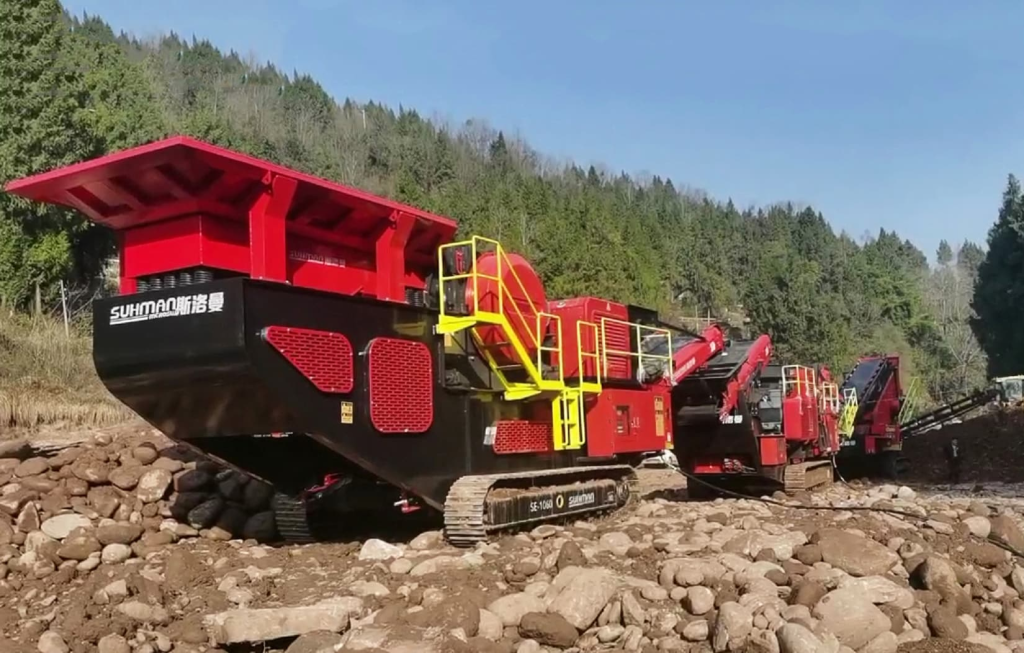

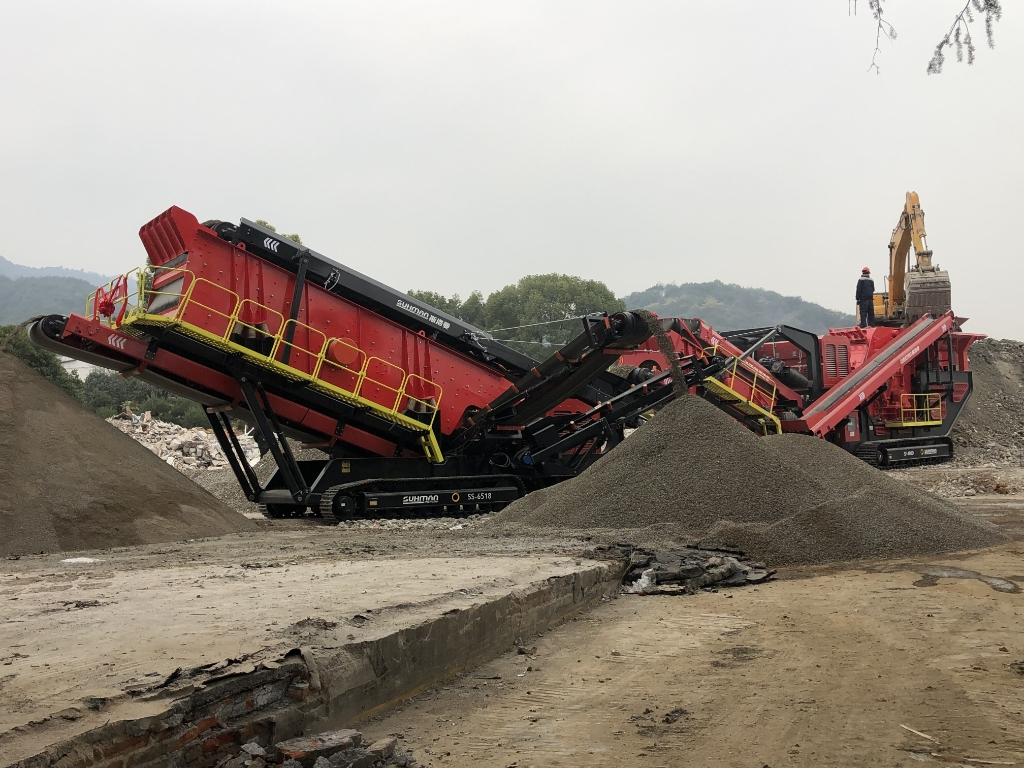

China Mobile Sand Making Machine/Plant | Integrated System OEM/ODM

OEM/ODM customization: chassis, modules, power, UI language, branding.
Fast setup: pre-wired skids & quick-connects; typical commissioning < 7–15 days.
Reliable outputs: stable FM & MB values; consistent 0–5/5–10/10–20 mm fractions.
Service: on-site commissioning, training, and export-ready documentation (CE/ISO).

Typical Process Flow

Feeding & Pre-screening — hopper + grizzly/scalper to remove fines & soil.
Primary Crushing — Jaw (SE-1060/125) for hard rock or impact for C&D.
Secondary/ Tertiary — Cone for controlled gradation; closed-circuit screening.
Shaping / Sand Making — VSI or high-speed impactor to improve flake index and produce M-sand.
Washing & Fines Recovery — wheel/spiral washer + hydrocyclone + fines recovery unit.
Dewatering & Grading — high-frequency dewatering screen; air classifier (optional).
Dust & Noise Control — pulse-jet dust collectors, sprays, enclosures, acoustic treatments.
Automation — PLC + VFDs, interlocks, load-based feeding, remote monitoring.

Configurations (Examples)

Granite/Hard Rock (150–400 t/h): Jaw + Cone + VSI + 3-deck screen + washer + dewatering screen.
River Gravel (120–300 t/h): Cone + VSI shaping + dual washer + fines recovery.
Recycled Concrete/Asphalt (80–250 t/h): Impact + pre-screen + magnet + air classifier + washer.
Tower-type (Dry Sand, 120–250 t/h): Vertical sifter, powder collector, minimal water use.

Powertrains: diesel-electric, grid-electric, or hybrid. Chassis: stationary skids, semi-mobile, or track-mounted modules.

Technical Targets (Guideline)

Capacity: 80–600 t/h (scalable by module)
FM (fine modulus): 2.6–3.0 (adjustable)
Stone Powder (≤0.075 mm): controllable via air/sifter or wet washing
Shape Index / Flakiness: optimized through VSI shaping
Water & Sludge: closed-loop options; thickener & press available
Uptime: ≥95% with preventive maintenance schedule

OEM/ODM Options

Branding & UI: colors, decals, bilingual HMI, documentation.
Module Choices: Jaw/Impact/Cone/VSI models, screen decks, washers, cyclones.
Environmental Package: enclosure, negative-pressure dust control, noise <85 dB(A).
Local Compliance: CE/ISO paperwork; country-specific electrical codes.

CTA: Send Your Feed Data & Target Gradation → We return a flowsheet & energy estimate.

Deliverables & Lead Time

Standard systems: 30–45 days | Customized: 45–75 days
Docs: P&ID, GA drawings, foundation loads, wiring, spare parts list, CE/ISO, packing list, C/O.
On-site: installation guidance, commissioning, operator & maintenance training.

Results You Can Expect

Lower cost per ton through load-balanced circuits and efficient shaping.
Consistent spec sand for ready-mix and asphalt, even with varying feed.
Rapid relocation (for modular/track options) to follow your project schedule.

Application Notes

Hard Rock (Granite/Basalt): prioritize cone reduction; use VSI for final shaping.
Limestone: impact route with lower power draw; simple wash train.
C&D Waste: add magnetic separation, pre-screening, and air classification to control fines.
River Gravel: focus on shaping to reduce smooth particle ratio; dual washing to control silt.

Distributor Program (Optional Block)

Looking to represent SUHMAN in your region? We offer territory protection, tiered pricing & rebates, demo support, and engineer training.
CTA: Become a Distributor

FAQ (Short)

Q: Wet or dry sand—can you do both?
A: Yes. Wet with washer/dewatering or tower-type dry with air classification.

Q: What feed data do you need?
A: Material type, moisture, abrasiveness, target capacity & gradation, FM range, environmental constraints.

Q: Can the system be grid-electric?
A: Yes—full-electric is available; we also supply diesel-electric or hybrid.

About

SUHMAN is a China factory specializing in mobile crushing and integrated sand-making systems. We provide OEM/ODM engineering, fast lead times, and full export documentation with commissioning and training.
